Profile: 6063-T5 primary aluminum, 2.5 mm thickness
Frame width: 53 mm; Frame height: 17 mm
Opening sash width: 700 mm; Height: 3000 mm (single sash ≤ 4 m²)
Glass: Double-glazed or laminated glass options:
5 mm + 16A + 5 mm / 5 mm + 24A + 5 mm

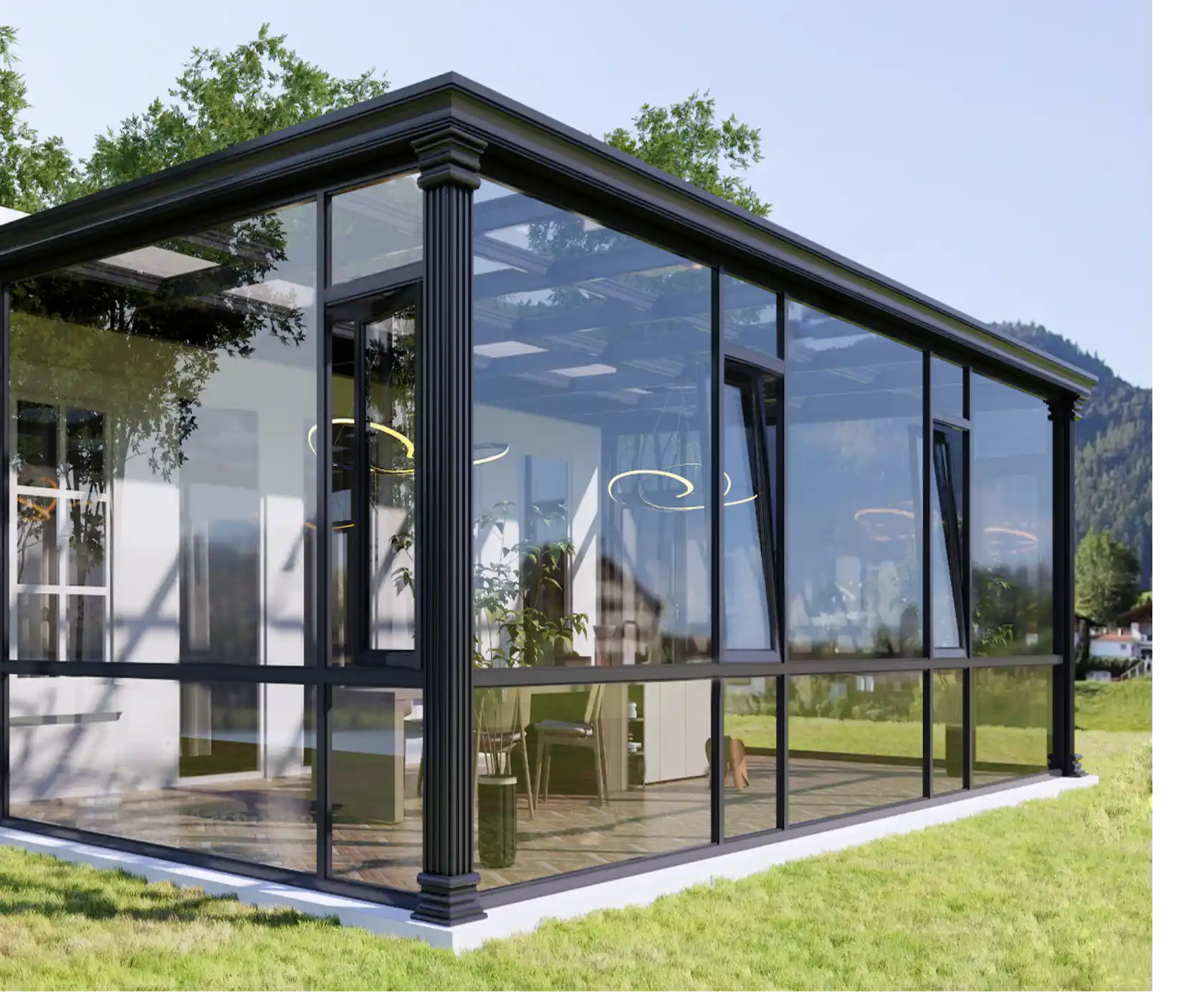

Opening: Flat-roof system, customizable configuration
Hardware: HOPO handle
Stanford heavy-duty hinge
Optional insect screen: 011 mesh (2.0 mm aperture), anti-theft carbon steel
Surface:Visible sash width: 58–140 mm
Standard or customized upon request
Color Options:Sand Grey (standard finish)
Packing:Foam inside + wooden crate, seaworthy
Thermal break aluminum, 1.8–2.5 mm wall thickness.
Powder-coated, anodized, or fluorocarbon, 25–30 years color retention.
Double/triple glazing, Low-E coating, argon-filled.
ROTO, SIEGENIA, HOPO, load capacity up to 200 kg.
Multi-layer EPDM gaskets, UV & heat resistant, ensuring airtight performance.
| Parameter | Value | Standard | Value for Builders |
|---|---|---|---|
|
U-Value |
≤ 1.8 W/㎡·K |
EN ISO 10077 |
Energy-saving, meets EU energy efficiency standards |
|
Sound Insulation |
≥ 35 dB |
EN ISO 717-1 |
Ideal for hotels and high-rise residential projects |
|
Water Tightness |
Class E1200 |
EN 12208 |
Prevents leakage, extends building lifespan |
|
Wind Resistance |
Class C5 |
EN 12210 |
Safety assurance for high-rise and coastal buildings |
|
Frame Thickness |
1.8–2.5 mm |
GB/T, EN |
High strength, long-term structural stability |
Meets EN/CE/ASTM standards, U-value ≤ 1.8
Large-scale production, flexible MOQs, on-time delivery
Factory-direct pricing, reduced logistics and duties
Design assistance, installation guidance, and after-sales service
Synchronized with your project schedule
High-quality aluminum systems delivered with competitive pricing and full customization, ensuring long-lasting performance for residential homes.
Factory-engineered curtain wall with excellent precision and weather resistance, offering both performance and architectural aesthetics for large-scale buildings.
Integrated aluminum sunroom and door-window solutions deliver energy efficiency, comfort, and elegant living space tailored for luxury villas.
Noise-reducing aluminum windows (≥ 35 dB) and thermal-break systems create quiet, comfortable, and energy-efficient guest rooms.
